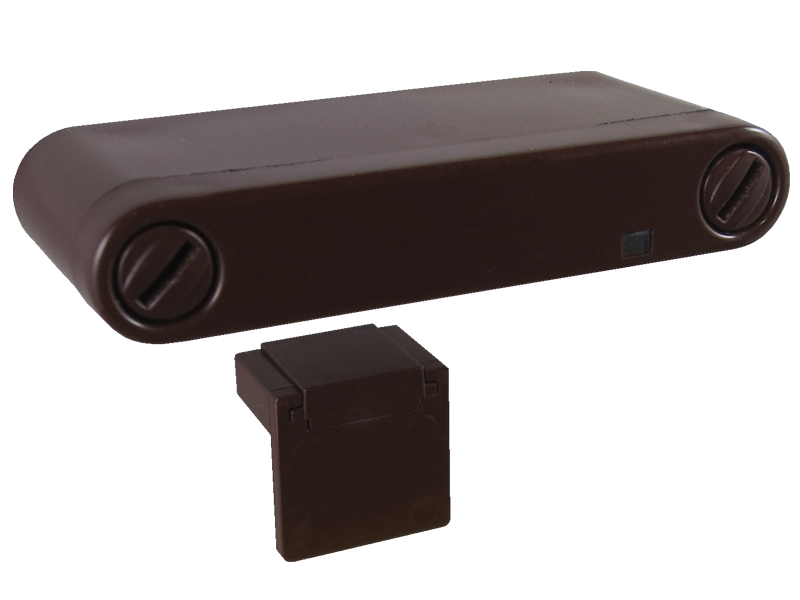

RTS16 Window contact STATUS
The RTS16 window contact is used for monitoring the status of windows or doors.
Opening and closing of the contact are each transmitted via a separate wireless signal. In addition, the battery status is checked with every transmission event, but at least once per day. If the battery level is low, a “battery low” signal is sent and the battery status continues to be checked every 4 hours.
Depending on the version, the following functions are available: ON/OFF: When the contact opens, an ON signal is sent; when it closes, an OFF signal is sent.
OFF/ON: When the contact opens, an OFF signal is sent; when it closes, an ON signal is sent.
STATUS: Every state change is transmitted once after 10 seconds and then retransmitted every 24 hours.
Scope of delivery:
- Window contact
- Battery
- Magnet angle
- Battery holder
- Mounting set
- User manual
67.71 €
67.71 €
(Tax included)
-
Channels
-
Radio Protocoll
-
Frequency
-
Function
-
Power Supply
-
Operating Temperature
-
Color
-
Manufacturer
| Function | ON/OFF, OFF/ON |
| Color | White, Brown |
| Channels | 1-Channel |
| Radio Protocoll | Easywave |
| Frequency | 868 MHz |
| Power Supply | 3 V Batterie CR2032 |
| Operating Temperature | -20 °C bis +60 °C |
| Manufacturer | ELDAT |
| Channels: 1-Channel |
| Radio Protocoll: Easywave |
| Frequency: 868 MHz |
| Power Supply: 3 V Batterie CR2032 |
| Operating Temperature: -20 °C bis +60 °C |
| Manufacturer: ELDAT |
