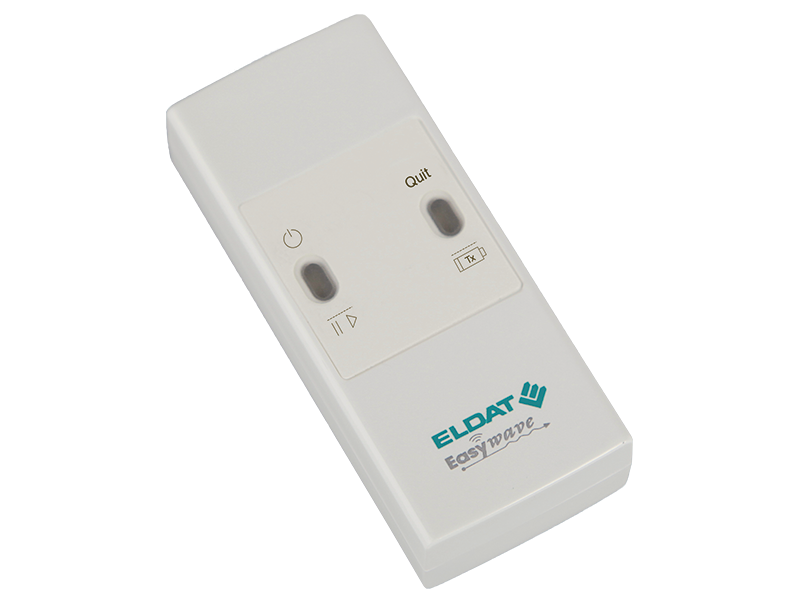

The RCL07 call receiver is used for radio connection to
call systems.
It has two channels. One channel is used for operating modes and
the switching functions. The second channel activates upon receiving a
low voltage telegram.
When the RCL07 receives the telegram from a call sender, this
is indicated by an LED and the receiver switches according to the selected
operating mode.
If the acknowledgment function is activated, an incoming call can be
acknowledged with a learned acknowledgment sender or directly on the RCL07.
The call function can be blocked for 15 minutes or indefinitely to
avoid false alarms during daily care or when not in use.
The RCL07 evaluates the low voltage telegrams of learned radio senders.
The RCL07 is programmed exclusively via the
internal control buttons, preventing accidental reprogramming.
Scope of delivery:
- Call receiver
- User manual
